Vacuum Casting process, or Urethane Casting process as it is also known is suitable for the production of a small quantity of injection moulded components with the quality of injection moulded parts without the level of financial investment required for tooling development.
“Just a quick note to say thanks for your help, the castings look great and as always a speedy service.” ------ Sinclair
The Vacuum Casting process refers to the production under vacuum of plastic or rubber components from silicone moulds. Parts produced using the vacuum casting process are dimensionally accurate, precise replicas of the master pattern with profiles and texture faithfully reproduced.
Unsure if the vacuum casting process is right for your current project? View the process comparison table.
Vacuum Casting Technology
Galaxy3DM design team has more than 10 years experience in VCM process field. Our experienced engineers will select the best method for your project based on factors such as production volume, parts dimensions, budget, and other requirements.Our extensive experience with VCM enables us to produce innovative and cost effective parts for our OEM&ODM customers.
Technical parameters:
Applicable mold: silicone mold (life 1-100 pieces).
(each mould can be reused with the number of castings greatly dependent on individual part complexity and casting resin selected).
Pouring material: two-component polyurethane PU. Materials used: AXSON polyurethane resin, Hei-cast polyurethane resin.
Properties: like ABS, PP, nylon, PMMA/PC transparent, soft rubber parts shord (40-90 D), high temperature (150 ℃), fire prevention materials .etc.
General working time: 1-4 hours per unit.
Standard reproduction accuracy: 0.20mm/100mm.
Thickness of pouring sample: minimum 0.5mm, best 1.5mm-5mm.
Maximum pouring workpiece: 2000mmX1200mmX1000mm.
Vacuum Casting part properties:
Heat resistance
- Colours and tints
- Fire retardance
- Flexibility and rigidity
- UV stability
- Range of surface finishes
- Insert options
- Water clear
- Flexible polyurethane casting resin grades range
- Inserts can be moulded in
- Range of finishes from grades of spark texture, smooth matt and satin to a high gloss finish.
Process benefits
In summary:
- Ideal for functional testing and/or marketing
- Cost effective
- Low volume runs
- High quality
- Fine detail and accuracy
- Range of properties can be achieved to mimic the final product
- No requirement for expensive hard tooling.
Vacuum Casting Process ABC
- Vacuum Casting Whole Process
- 1.The Vacuum Casting process begins with the creation of a master pattern using the Sterelithography process or By CNC machining. The SLA model or CNC Model is then finished/painted to meet customer specified surface texture is achieved. Where the customer has supplied an existing component for casting, any part clean up is carried out at this stage.
- 2.The master pattern is then fitted with a casting gate and suspended upon the parting line in a mould casting frame
- 3.Silicone rubber is mixed, de-aerated and poured under vacuum into the mould casting frame, where it will flow around the master pattern, to create a silicon mould.
- 4.The mould is then cured within a heating chamber, and once set the mould is removed and cut along the parting line. The master pattern is removed before a casting funnel is placed and the mould sealed closed.
- 5.Customer specified casting resin is then measured and any colour pigment mixed, where specific colour requirements have been outlined. The mould is returned to the casting chamber and the resin is pour into the mould under vacuum to avoid any air pockets or voids.
- 6.When the resin has been cast, the mould is then placed in heating chamber to cure. Once cured the casting is removed from the mould, and any subsequent castings are produced (each mould can be reused with the number of castings greatly dependent on individual part complexity and casting resin selected).
- 7.At this stage the gate and risers are removed from the casting and any additional finishing is carried out.
Silicone Vacuum Casting Mold
Vacuum Casting Whole Process
Vacuum Casting Process1
Vacuum Casting Process2
Surface Process
Golden Electroplating
UV Painting
Silver Electroplating
Vacuum Casting /RTV Casting/PU Casting Products

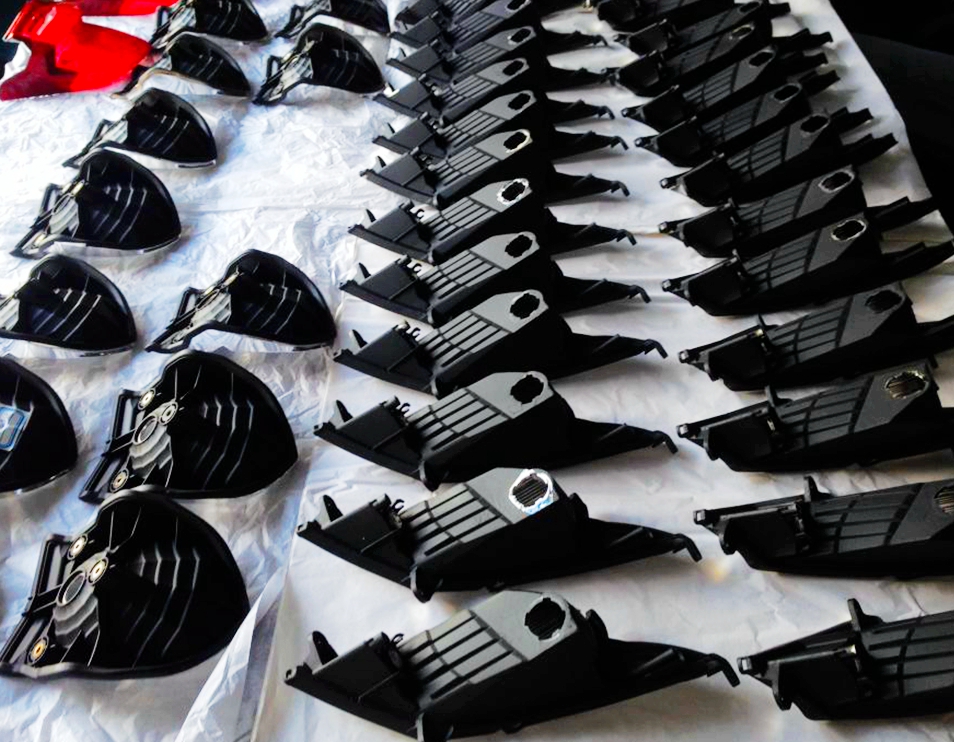

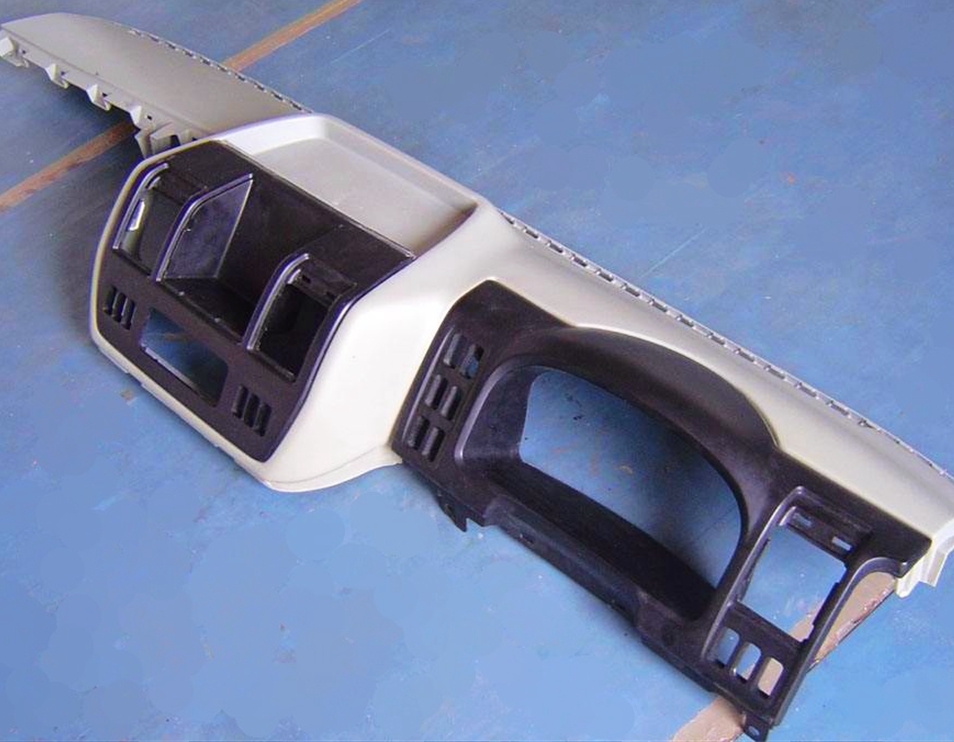

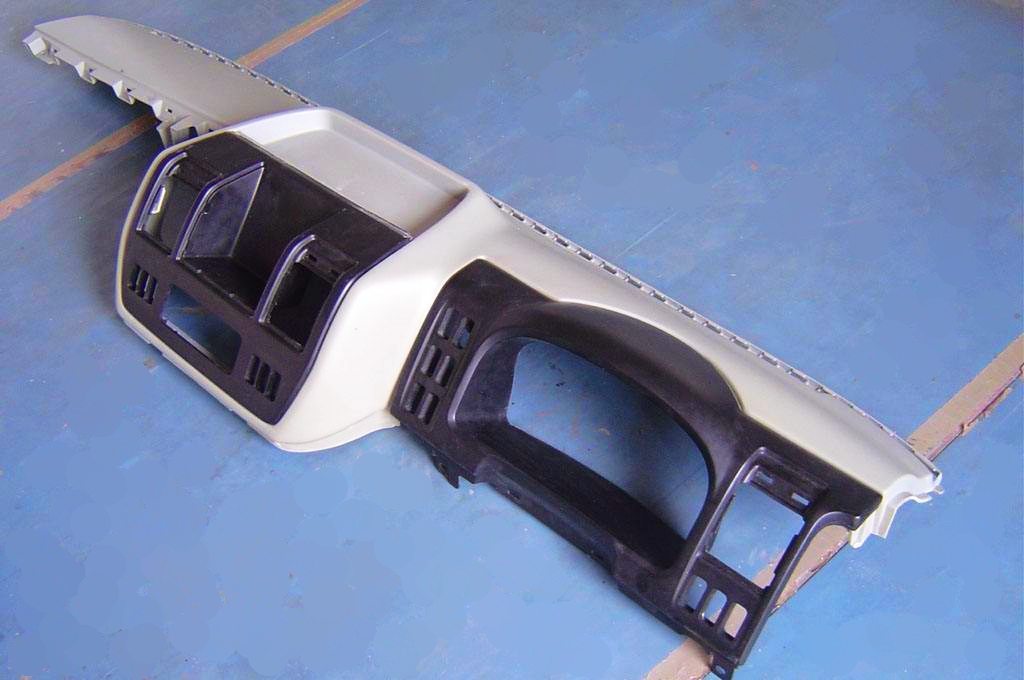

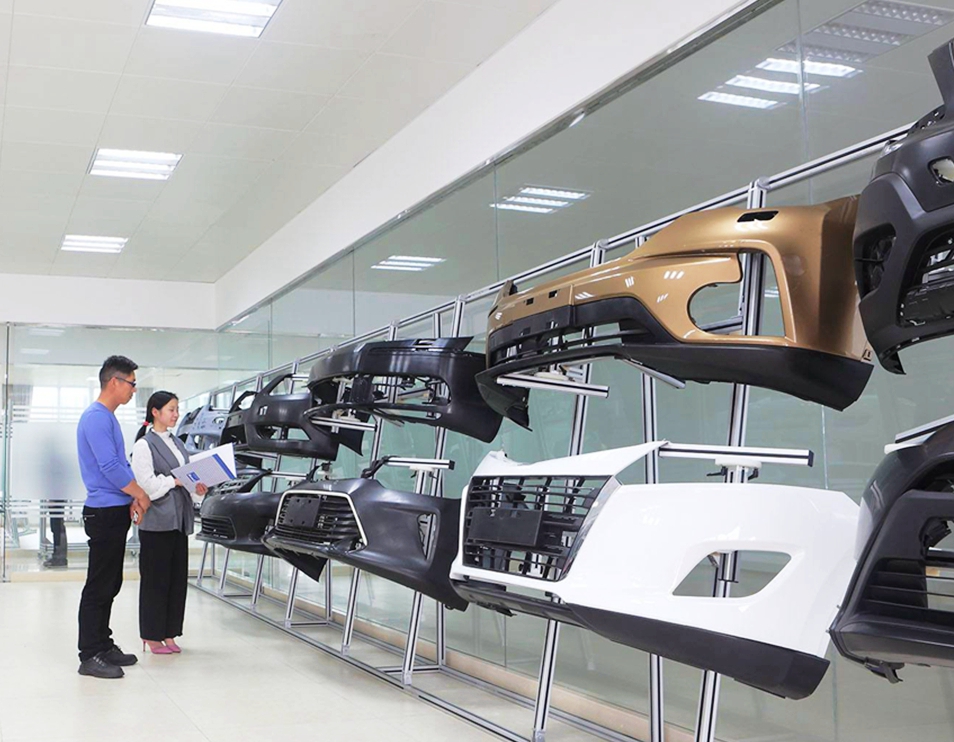

Below are several examples of injected parts and sub-assemblies which we have manufactured. Box, pump, drone, packing, cosmetics, etc.
Do not hesitate to send us 3D files for analyze of the ability to produce these parts. No MOQ. We are ready to assist you in your project.
If required by our Partner, we can even assist our foreign partner to set up a Vacuum Casting and Surface Processing Production Line.
